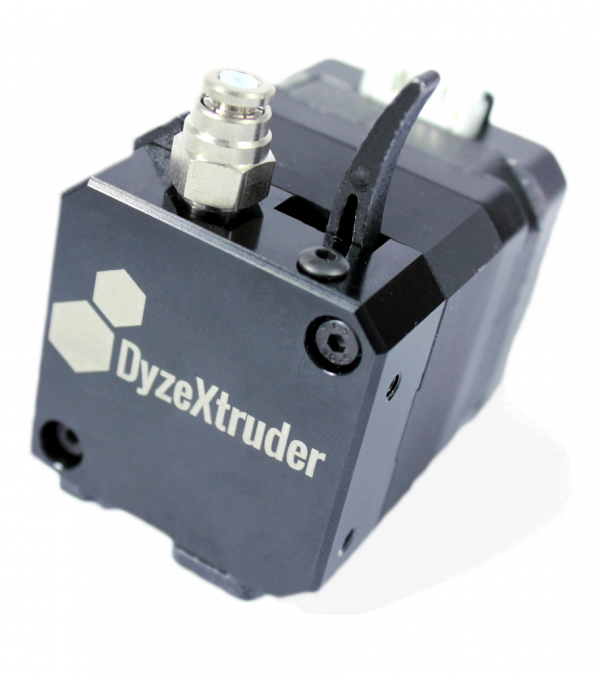

DyzeXtruder GT Extruder
The combination of a reduction gear, dual pinch system, and unique all-metal design enables the DyzeXtruder GT to push as much as 9 kg (20 pounds) of force. This is more than necessary for all 3D printing applications. Still, the DyzeXtruder GT is a lot lighter than a traditional extruder with a planetary gearbox, allowing for faster printer accelerations.
High pushing force
The combination of reduction gear, dual pinch and unique design enables the DyzeXtruder GT to push as much as 9 kg (20 pounds) of force. This is more than necessary for all 3D printing applications.
The aluminum housing is designed to offer a reliable operation, even in a high temperature environment.
Dual pinch drive system
The dual-pinch system allows a higher pushing force with a lower filament pressure. It reduces the risk of flattening the filament when highly detailed prints require a lot of retractions.
Print any plastics
The DyzeXtruder-GT is able to print every single type of plastic filaments currently sold on the market
Easy hotend swapping
The hotend locking mechanism is very practical and rigid.You can secure the hotend in place with only a screw. You can remove it even if there is still a filament inside the extruder due to its turning mechanism. No more hassle of disassembling your setup when you need to maintain your printer.
Easy filament removal and insertion
The unique lockable lever makes filament change very easy and convenient. The locking mechanism holds the lever in position while you change the filament. After, simply push back the lever to disengage the locking mechanism.
DyzeXtruder-GT Push Force (kg) vs other popular brands
- Rigid Filament
- Flexible Filament
- Extruder Total Mass
The DyzeXtruder GT always comes with a special push to connect fitting. APTFE tube can be inserted through the connector to guide the filament as far as possible inside the mechanism. A single modification in the firmware can easily transform a direct drive setup into a bowden.
Liquid Cooling Ready
The DyzeXtruder GT can be easily converted to a liquid-cooled setup with Dyze Design’s specialized cooling blocks.
Easy to mount
The side mounting threads make it very easy to assemble; only two M3 screws are needed to fit the DyzeXtruder GT in a printer.
The DyzeXtruder GT is optimized to work perfectly with Dyze Design’s DyzEND-X hotend. The best results are achieved when pairing these two products.
Metal Reduction Gears
The DyzeXtruder GT has a 5.65 : 1 gear ratio. This ratio has been chosen to use the full potential of a very small motor while, enabling very high pushing forces. The gears are custom made from high strength hardened steel and brass. This combination allows low friction operations and a longer life. The gears and bearings are designed to last for hundreds of kilograms in extreme conditions.
The DyzeXtruder GT comes with connectors for its motor so you can easily maintain it.
Small form factor
The DyzeXtruder GT is not larger than the NEMA 17 it uses, making it very space efficient on a multiple extruders configuration. Saving space on a carriage can allow you to print larger parts on a single printer.
The gear ratio was chosen to get the best of a very small motor.The DyzeXtruder GT is a lot lighter than a traditional extruder with a planetary gearbox, allowing for faster printer accelerations.
Clean pinch system
The unique tooth profile allows a 4-contact point on the filament, increasing even more the maximum pushing force. Combined with the dual pinch drive, it can unlock the full potential of a geared motor and prevents any damage to the filament during printing.
|Operating temperature (air cooled)||0°C to +60°C|
|Operating temperature (liquid cooled)||0°C to +120°C|
|Top fitting tube OD||4.00mm|
|Gear ratio||5.65 : 1|
|Groove mount head thickness||2 – 5mm|
|Mounting screw thread||M3|
|Mounting screw min thread depth||5mm|
